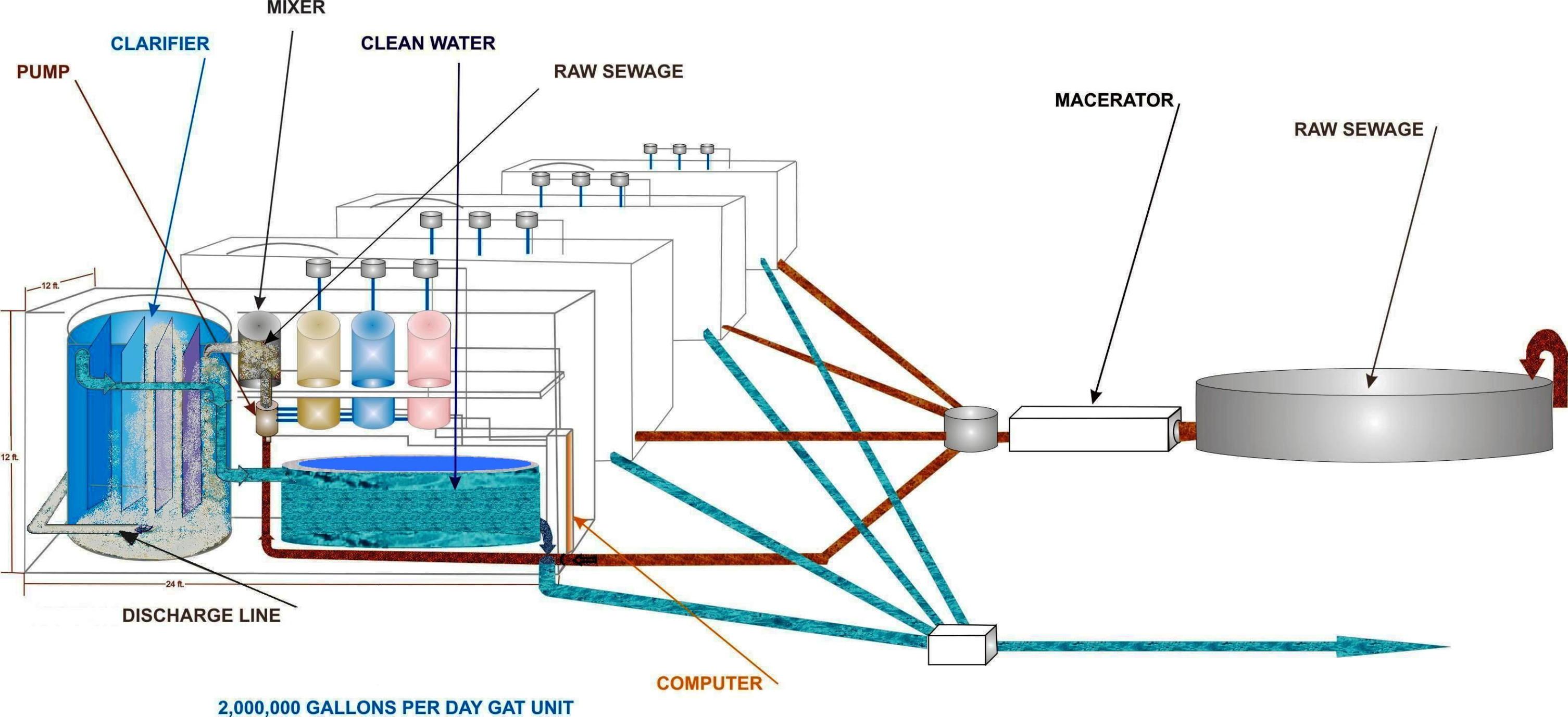

2,000,000 GALLON PER DAY GAT SYSTEM
GAT SYSTEM MODULE SETUP
This is an adaptation of our GAT system and not intended to be a working schematic of the technology.
■
4 x 500,000 gallon per day individual modules - side by side
■
Each module sits on a 12' x 12' pad.
■
Mixer combines chemical and raw sewage
■
Material is discharged together into the clarifier.
■
Agglutination is moving up and down through the clarifier tank until the solids have settled to the bottom.
■
Sludge line removes sterilized sludge from the tank bottom for use in other markets.
■
System, as shown, will clean 2,000,000 gallon per day.
500,000 Gallon Per Day GAT Module Unit
